PRODUCTS › Lauer

Serial interface module for PCS9xxx

Serial interface module for PCS9xxx.
IF1 = RS422/RS485, IF2 = RS232/TTY


Condition: Used. Serviceable quality. Retrieved from working equipment and/or tested where possible. Some light cosmetic damage or discolouration may be present.

Warranty: 6 months

Manufacturer: Lauer
Part Number: PCS8010


P.O.A.

Touch controller card

ISA touch controller. VPC collection.



Condition: Used. Serviceable quality. Retrieved from working equipment and/or tested where possible. Some light cosmetic damage or discolouration may be present.

Warranty: 6 months

Manufacturer: Lauer
Part Number: LP 033/19a
Alternative Part Number: LP03319a


P.O.A.

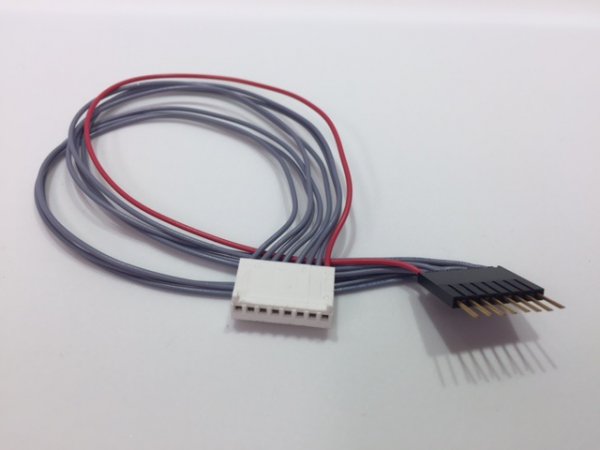

Touch panel adapter cable

Adapter cable. Touch panel to touch controller card. 8 pin male header to 8 pin female socket. L=260mm.
Spare part for Lauer VPC.


Condition: Used. Serviceable quality. Retrieved from working equipment and/or tested where possible. Some light cosmetic damage or discolouration may be present.

Warranty: 6 months

Manufacturer: Lauer
Part Number: VPC-CAB-TCH-CON-260


P.O.A.

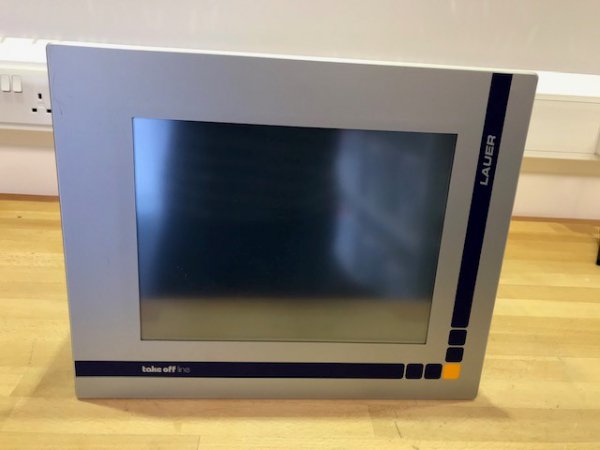

Touchscreen HMI VT212e

Touchscreen HMI panel, Model: VPC take off line VT212e (Mk 2 with 2.5" plug in HDD),
Display: 12.1" LCD TFT colour 800 x 600
Touchscreen: 12" resistive
CPU: 1.2GHz CELERON
RAM: 0.5GB
OS: Windows XP Professional SP3
HDD: 40GB
4 x PCI slot (2 spare: 10/100 Ethernet and dual port RS232 cards fitted), ISA slot, 2 x RS232 serial D9M, 2 x USB, VGA out D15F, PS2 mouse, PS2 keyboard, Mic, Audio in, Audio out, LPT D25F, 3.5" FDD


Condition: Used. Seller refurbished. Retrieved from working equipment and/or tested where possible.Some light scratching and wear marks on touchscreen.

Warranty: 6 months. Display backlighting components excluded from warranty.

Manufacturer: Lauer
Part Number: VT212e.II.LAU
Alternative Part Number: VT212eIILAU


P.O.A.

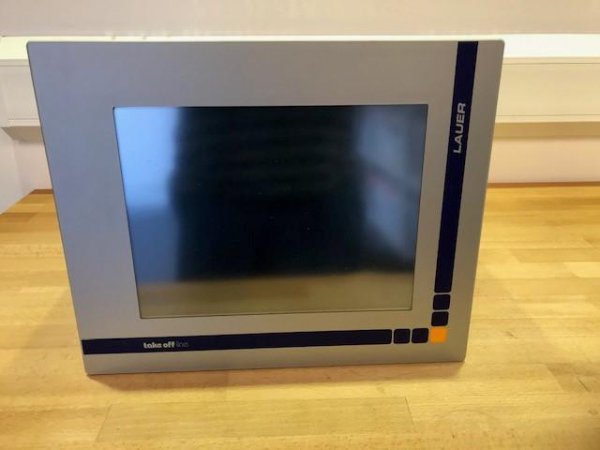

Touchscreen HMI VT212e

Touchscreen HMI panel, Model: VPC take off line VT212e (Mk 1 with 3.5" HDD),
Display: 12.1" LCD TFT colour 800 x 600
Touchscreen: 12" resistive
CPU: 434MHz CELERON
RAM: 0.5GB
OS: Windows XP Professional SP3
HDD: 40GB
4 x PCI slot (3 spare 10/100 Ethernet fitted), ISA slot, 2 x RS232 serial D9M, 2 x USB, VGA out D15F, PS2 mouse, PS2 keyboard, LPT D25F, 3.5" FDD


Condition: Used. Seller refurbished. Retrieved from working equipment and/or tested where possible.Some light scratching and wear marks on touchscreen.

Warranty: 6 months. Display backlighting components excluded from warranty.

Manufacturer: Lauer
Part Number: VT212e.LAU
Alternative Part Number: VT212eLAU


P.O.A.

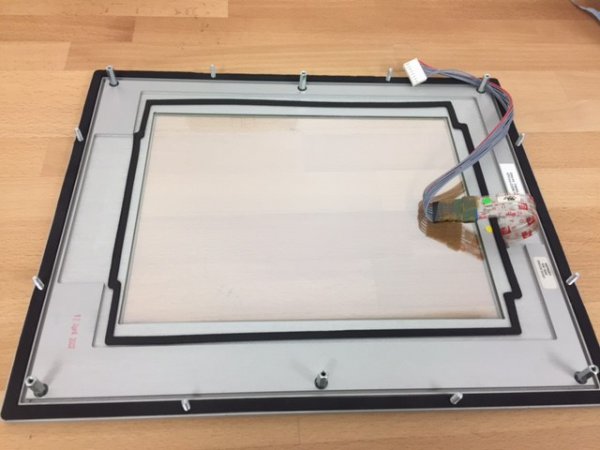

Touchscreen, 12" resistive

Replacement touchscreen, 12" resistive (3M MicroTouch 95406).
Removed from Lauer VPC type VT212e.
Mounted in VPC bezel part no. VPCco/Z208/D.
Complete with adapter cable for connection to VPC touch screen controller card.
Spare part.


Condition: Used. Serviceable quality. Retrieved from working equipment and/or tested where possible. Some light wear marks present.

Warranty: 6 months

Manufacturer: Lauer
Part Number: VPC-TOUCH-12-SPARE


P.O.A.

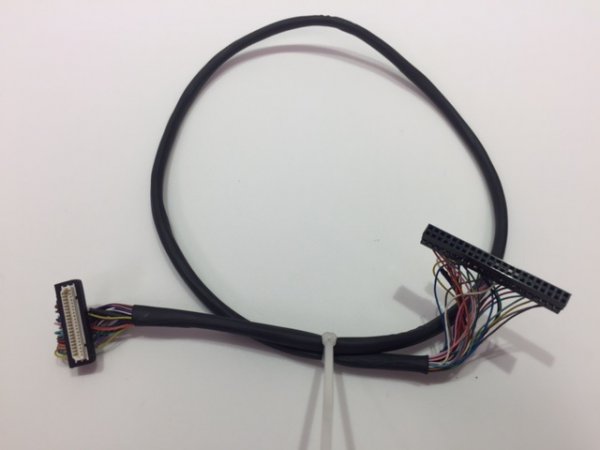

Video cable

Video cable. LCD panel to graphics card. L=600mm.
Spare part for Lauer VPC.


Condition: Used. Serviceable quality. Retrieved from working equipment and/or tested where possible. Some light cosmetic damage or discolouration may be present.

Warranty: 6 months

Manufacturer: Lauer
Part Number: VPC-CAB-VID-LCD-600


P.O.A.
